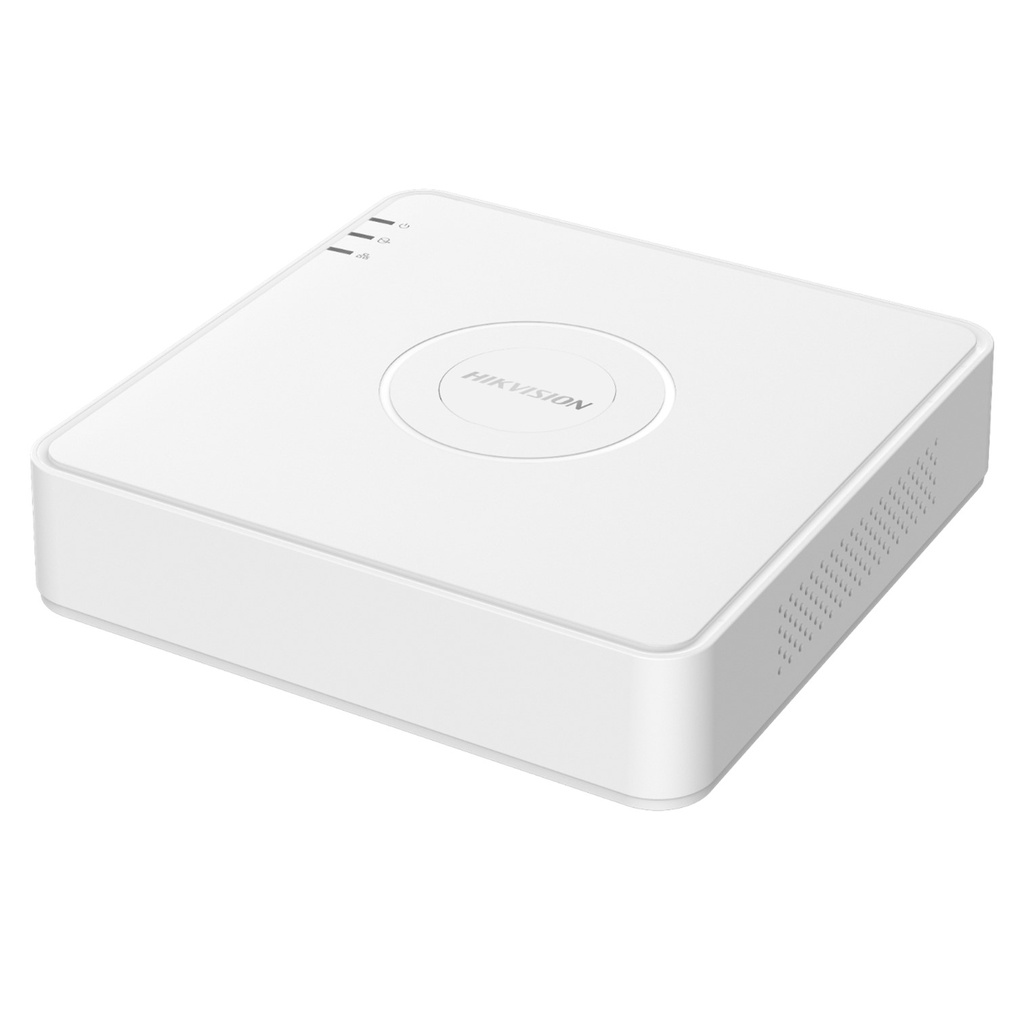

DVR 8 Megapixel / 8 Canales 4K TURBOHD + 8 Canales IP / 1 Bahía de Disco Duro / 4 Canales de Audio / 4 Entradas de alarma / Vídeoanálisis
Marca: Hikvision
Modelo: DS-7108HUHI-K1
Protección Perimetral: Line Crossing Detection/Intrusion Detection 2-ch
Enhanced VCA mode on: 8-ch
Recording: Compresión De Vídeo H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolución De Codificación: When 8 MP Lite mode is not enabled: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
When 8 MP Lite mode is enabled: 8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF
Frame Rate Main stream: When 8 MP Lite mode is not enabled: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1 of DS-7104HUHI-K1.
When 8 MP Lite mode is enabled: 8 MP Lite/3 MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps *: 8 MP Lite is only available for DS-7104HUHI-K1.
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Vídeo Bitrate: 32 Kbps to 10 Mbps Doble Flujo Support Stream Type Video, Video & Audio Compresión De Audio G.711u Audio Bitrate 64 Kbps Video And Audio Entrada De Vídeo IP 4-ch (up to 12-ch)
Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada De Video Analógico: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Incoming Bandwidth Up to 64 Mbps
HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input: PAL/NTSC
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Entrada De Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Salida De Audio
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Reproducción Síncrona
8-ch
Red Total Bandwidth: 128 Mbps
Conexión Remota: 64
Protocolo De Red: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Interfaz De Red 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacidad: Up to 6 TB capacity for each disk
Interfaz USB: 2 × USB 2.0
Alarma E/S: N/A
General
Fuente De Alimentación
12 VDC, 1.8 A
Consumo: ≤ 15 W
Temperatura De Trabajo: -10 °C to +55 °C (+14 °F to +131 °F)
Condiciones De Humedad: 10% to 90%
Dimensión (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) ≤ 2 kg (4.4 lb)
Marca: Hikvision
Modelo: DS-7108HUHI-K1
Protección Perimetral: Line Crossing Detection/Intrusion Detection 2-ch
Enhanced VCA mode on: 8-ch
Recording: Compresión De Vídeo H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolución De Codificación: When 8 MP Lite mode is not enabled: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
When 8 MP Lite mode is enabled: 8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF
Frame Rate Main stream: When 8 MP Lite mode is not enabled: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1 of DS-7104HUHI-K1.
When 8 MP Lite mode is enabled: 8 MP Lite/3 MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps *: 8 MP Lite is only available for DS-7104HUHI-K1.
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Vídeo Bitrate: 32 Kbps to 10 Mbps Doble Flujo Support Stream Type Video, Video & Audio Compresión De Audio G.711u Audio Bitrate 64 Kbps Video And Audio Entrada De Vídeo IP 4-ch (up to 12-ch)
Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada De Video Analógico: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Incoming Bandwidth Up to 64 Mbps
HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input: PAL/NTSC
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Entrada De Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Salida De Audio
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Reproducción Síncrona
8-ch
Red Total Bandwidth: 128 Mbps
Conexión Remota: 64
Protocolo De Red: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Interfaz De Red 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacidad: Up to 6 TB capacity for each disk
Interfaz USB: 2 × USB 2.0
Alarma E/S: N/A
General
Fuente De Alimentación
12 VDC, 1.8 A
Consumo: ≤ 15 W
Temperatura De Trabajo: -10 °C to +55 °C (+14 °F to +131 °F)
Condiciones De Humedad: 10% to 90%
Dimensión (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) ≤ 2 kg (4.4 lb)
